Push Type Synchro Cutter
Overview
Product Details

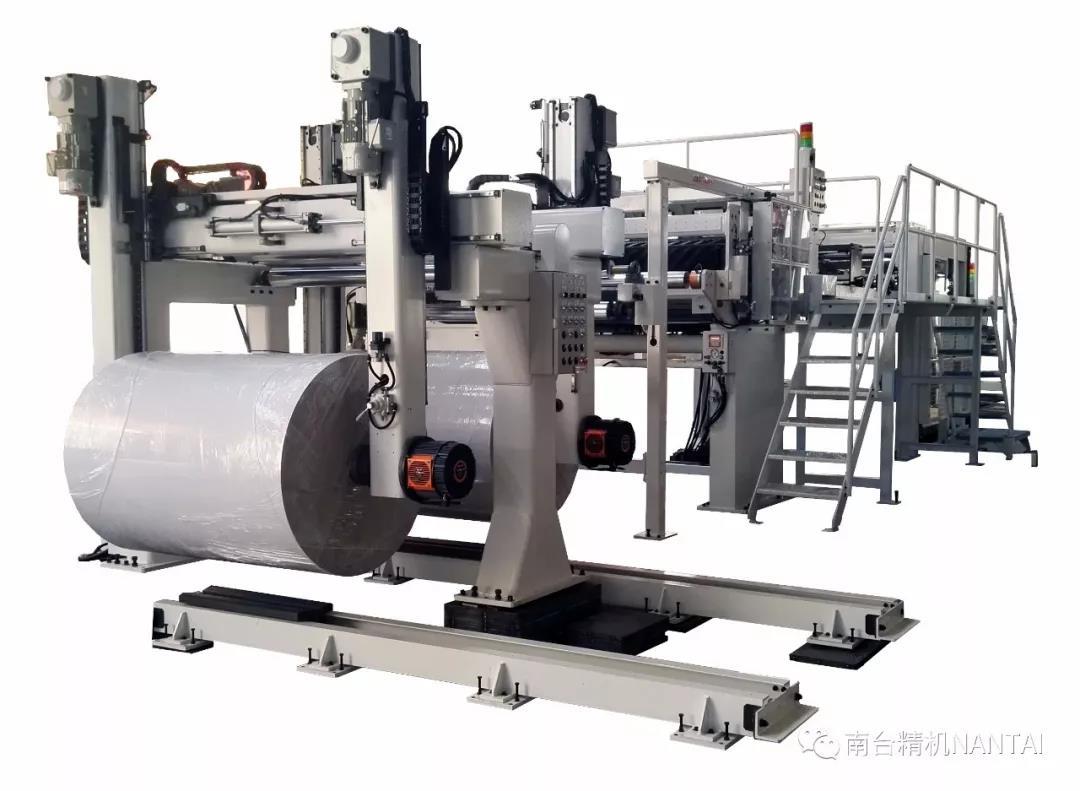

ASM-1700 Push Type Synchro Cutter
| Model | ASM-1700 |
| Paper type | general paper jam |
| Paper weight | 127-500g / m2 |
| Roll size | width 1600mm (maximum), diameter 1200mm (maximum) |
| Number of paper of run | usually 2, can be multiple (optional, up to 10) |
| Cutting length | 450-1350mm |
| Paper width | maximum 1600mm |
| Running speed | maximum 200m / min (could be changed by the length of paper cutting) |
| Paper cutting accuracy | + / - 0.15mm or less (Zero run out of cutter shaft) |
| Tension control | According to the web diameter control (open circuit mode), Disc brake, Tension 50-110kg / full |

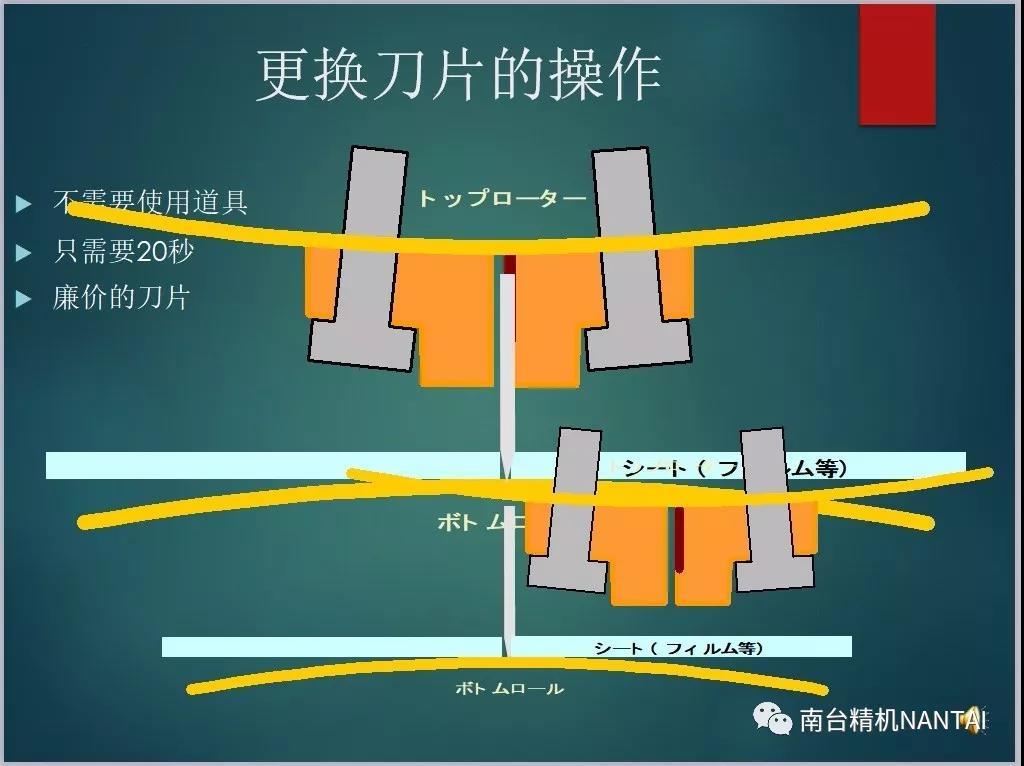

| Paper splitting knife | roller double knife, short single double knife available |
| Paper cutting device | push type synchronous paper cutting (2 knives) |
| Power | 380V / 50Hz |
| Air pressure | 5kg / cm2, use dehumidified air |
| Setting place | first floor |
Superior quality:
※ Smooth and flat cut over other cutting devices
※ Reduce a lot of waste
※ Reduce the process of edge grinding and print directly to the printing machine
High efficiency：
※ For small size products, high-speed cutting can be carried out by installing 2 knives
※ Multi roll cutting at the same time (optional, up to 10 layers)
※ The paper feeding section and the paper receiving section are equipped with multiple paper tappers to make the paper receiving more orderly
※ Reduce the weight of rotor, reduce the consumption of motor = save power
